Diesel concrete pump is the preferred choice for over 90% of customers in global construction and infrastructure projects, especially under complex operating conditions. The key reason lies in its ability to solve three critical pain points for construction teams: reliance on grid power, harsh environments, and the need for efficient, uninterrupted work. Whether in off-grid remote mountainous areas, disaster zones with unstable power, or remote mining sites, it stands out as a reliable “project power core” with the advantages of grid independence, strong power and all-weather adaptability. To fully understand its value and select the right model for your needs, let’s first delve into the main classifications of diesel concrete pumps.
Types of Diesel Concrete Pumps: Tailored Solutions for Every Construction Scenario
Aimix offers three core types of diesel бетононасосы: mixer type, trailer type, and boom type. Each is engineered with unique structures and functions to match diverse project needs—from small residential builds to large-scale infrastructure. Below is a detailed breakdown of each type, including key specifications, hot models, and application scenarios. This will help you make an informed choice for your project.
Дизельные бетононасосы смесительного типа
Дизель бетононасос integrates concrete mixing and pumping in one unit. This design eliminates the need for separate mixing equipment, making it ideal for projects with limited space or tight budgets. Aimix provides two mixer structures to cater to different efficiency and quality demands.
With Vertical Mixing Shaft
- Требования: It features a double hydraulic drive system with two mixing shafts. This boosts mixing speed by 2.3 times compared to single-shaft designs.
- Горячие модели: ABJW40C, ABJW60C
- Бетонный выход: 40-60m³ / ч
- Применение: Perfect for building construction, road paving, and bridge reinforcement—where high-quality concrete and efficiency are priorities.
С барабанным микшером
- Требования: This is a cost-effective option for budget-conscious projects.
- Горячие модели: АБЖЗ30К, АБЖЗ40К
- Бетонный выход: 30-40m³ / ч
- Применение: Well-suited for residential projects, small commercial buildings, and repair work that don’t require ultra-high concrete quality. It comes at a more affordable price point.
Trailer Type Diesel Concrete Pumps
Дизель бетононасос прицеп is designed for long-distance concrete transportation via pipelines. It’s a workhorse for large-scale projects.
- Горячие модели: ABT30C - ABT90C
- Ассортимент продукции: 30-90m³ / ч
- Применение: Suitable for high-rise construction, large foundations, and infrastructure projects where site access is challenging.
- Ключевое преимущество: It is highly portable. The pump can be easily lifted and transferred on-site using a portable gantry crane or forklift. This ensures flexible deployment even in confined or remote work areas. With stable performance and high output, it’s reliable for projects needing continuous concrete supply over extended periods.
Дизельные бетононасосы стрелового типа
The boom type diesel engine concrete pump is equipped with an extendable boom. This eliminates the need for manual pipe installation and disassembly, offering unmatched flexibility for high-rise or long-distance concrete pouring. Aimix offers three chassis options of стрела бетононасос to adapt to different terrain and project needs.
With Truck Chassis
- Boom lengths available: 26m, 30m, 33m, 38m
- Max concrete output: 120m³ / ч
- Hot model: AMY33. Application: Excels in farmland drainage and rural civil construction.
- Преимущества: Lightweight design, short wheelbase, compact body. It can navigate narrow construction sites and be driven on public roads for seamless site transitions—boasting the highest output among all boom-type models.
With Crawler Chassis
- Boom lengths: 8m-25m
- Максимальная мощность: 50m³ / ч
- Hot model: AMY18
- Применение: Primarily used in mountainous regions, farmland drainage, and locations inaccessible to concrete transport trucks.
- Преимущества: Robust crawler chassis and remote control functionality. Enables safe and efficient operation in rough or uneven terrain.
With Wheel Chassis
- Boom lengths: 20m-33m
- Максимальная мощность: 89m³ / ч
- Горячие модели: АМИ20, АМИ26
- Применение: Ideal for rural residential buildings and drainage projects—its boom can reach up to the 10th floor.
- Преимущество: Requires less road width than truck chassis models, making it more agile in tight construction environments.
Understanding the unique strengths of each diesel concrete pump type is the first step to selection. Next, we’ll dive into the key parameters that directly impact performance and project compatibility.
Below are the specifications, you can check them if you want to learn more details.
| пункты | Единицы | ABJZ30C | ABJZ40C |
|---|---|---|---|
| Максимум. Тео. производительность по бетону (л. / ч) | M3 / ч | 30 | 40 |
| Номинальная производительность смесителя | m3 | 0.56 | 0.56 |
| Номинальная пропускная способность смесителя | m3 | 0.35 | 0.45 |
| Максимальное давление бетононасоса (H./L.) | МПа | 10 | 10 |
| Тип распределительного клапана | S клапан | S клапан | |
| Диаметр бетонного цилиндра × ход | mm | Φ140 × 1000 | Φ180 × 1000 |
| Мощность бункера | L | 400 | 400 |
| Диаметр выходного отверстия | mm | Φ150 | Φ150 |
| Модель дизельного двигателя | Weichai | Weichai | |
| Электротехника | KW | 37 | 82 |
| Скорость вращения | г / мин | 1480 | 2200 |
| Тип цепи | Разомкнутая цепь | Разомкнутая цепь | |
| Давление в насосной системе | МПа | 26 | 32 |
| Давление в системе смешивания | МПа | 6-8 | 6 |
| Емкость масляного бака | L | 260 | 350 |
| Максимум. Теоретическое расстояние транспортировки по вертикали / горизонтали | m | 120/300 | 120/500 |
| Максимум. совокупный диаметр | mm | Пятно / осыпь: 10/20 | Пятно / осыпь: 40/50 |
| Внутренний диаметр подающей трубы | mm | Φ100 | Φ125 |
| Размеры:длина×ширина×высота | mm | 4500 x 1750 x 1600 | 600 x 2300 x 3150 |
| Общий вес | kg | 3000 | 4500 |
| пункты | Единицы | Параметры | |||
|---|---|---|---|---|---|
| АВТ40С | АВТ60С | АВТ80С | |||
| вся производительность машины | Максимум. Тео. производительность по бетону (л. / ч) | M3/h | 40/26 | 67/45 | 84/45 |
| Тип распределительного клапана | S клапан | S клапан | S клапан | ||
| Диаметр бетонного цилиндра и ход | mm | Φ180 × 1200 | Φ200x1650 | Φ200x1800 | |
| Емкость бункера x высота загрузки | Л / мм | 400/1100 | 800/1400 | 800/1400 | |
| Диаметр выходного отверстия | mm | Φ150 | Φ180 | Φ180 | |
| Система питания | Модель дизельного двигателя | Weichai | Вечай | Вечай | |
| Дизельная энергетика | KW | 82.00 | 129.00 | 176.00 | |
| Скорость вращения | г / мин | 2200.00 | 2200.00 | 2200.00 | |
| Гидравлическая система | Тип цепи | Разомкнутая цепь | Разомкнутая цепь | Разомкнутая цепь | |
| Давление в насосной системе | МПа | 32.00 | 32.00 | 32.00 | |
| Давление в системе смешивания | МПа | 10.00 | 10.00 | 10.00 | |
| Емкость масляного бака | L | 370.00 | 560.00 | 560.00 | |
| Другие параметры | Максимум. Теоретическое расстояние транспортировки по вертикали / горизонтали | m | 120/500 | 180/1000 | 260/1200 |
| Максимум. совокупный диаметр | mm | Пятно / осыпь: 40 | Пятно / осыпь: 40 | Пятно / осыпь: 40 | |
| Внутренний диаметр подающей трубы | mm | Φ125 | Φ125 | Φ125 | |
| Габаритные размеры:: лengthxширинаxвысота | mm | 5000 x 1850 x 1700 | 5800 x 2000 x 1750 | 6300 x 2100 x 2350 | |
| Общий вес | kg | 4500.00 | 6500.00 | 6900.00 | |
Дела клиентов
Aimix’s diesel concrete pump for sale support projects in different regions all over the world. Here are some of our recent cases.
Guatemala Diesel Concrete Trailer Pump
- Локации: Гватемала
- Модель/Тип: Автобетононасос прицепной ABT40C
- Проект: Several buildings construction in different region
- Отзыв клиента: This trailer concrete pump with diesel engine helps us achieve a 35% reduction in concrete placement time across multiple housing projects, enabling faster project completion and increased contract capacity.
Дизельный бетононасос Jamaica
- Локации: Ямайка
- Модель/Тип: Автобетононасос с стрелой 33 м
- Проект: Строительство высотных зданий
- Отзыв клиента: Стрела 33 м, очень длинная и не требует установки. Грузовик может проехать по узкой рабочей площадке.
Филиппины Дизельный бетоносмесительный насос
- Локации: Филиппины
- Модель/Тип: ABJZ40C переносная дизельная бетономешалка с насосом
- Проект: Операция распыления для строительства
- Отзыв клиента: Маленький грузовик отбуксировал его на строительную площадку. Этот насос мощный на месте. Цена дизельного бетоносмесительного насоса доступна.
From the real-world cases of diesel concrete pumps you will elaborate on, we can clearly see their outstanding performance in specific harsh working conditions. These case practices not only validate the reliability of diesel concrete pumps but also provide a key clue for us to explore a crucial question: which countries are most suitable for applying diesel concrete pumps? By reversing the analysis—starting from the working conditions that diesel concrete pumps excel at—we can accurately match the power supply status of project locations in different countries. Next, let’s delve into the detailed analysis.
Which Countries Are Suitable for Diesel Concrete Pumps?
The core competitive advantage of diesel concrete pumps is their independence from grid power—they can rely on their own diesel engines to achieve stable and continuous operation. This determines that they are most compatible with countries or regions where: 1) grid coverage is incomplete (especially in remote project locations); 2) power supply is unstable (frequent blackouts); 3) the cost of accessing temporary electricity for construction projects is excessively high. By associating these core applicable working conditions with the national power infrastructure status of different regions, we can clearly lock in the target markets.
Southeast Asian Developing Countries (Indonesia, Vietnam, Philippines, etc.)
Most Southeast Asian countries have a “urban-rural dual structure” in power supply: urban areas have relatively complete power grids, but a large number of infrastructure projects (rural road construction, farmland water conservancy, remote island residential construction) are located in suburban and rural areas with scarce grid coverage. For example, Indonesia, as an archipelagic country, has more than 17,000 islands, and it is extremely difficult and costly to extend the power grid to remote islands. Projects such as island road paving and small port renovation can only rely on off-grid equipment. Diesel concrete pumps, with their mobility and stable power output, have become the first choice for such projects. Similarly, rural areas in Vietnam and the Philippines often face power shortages during peak construction periods, and diesel concrete pumps can avoid construction delays caused by power outages.

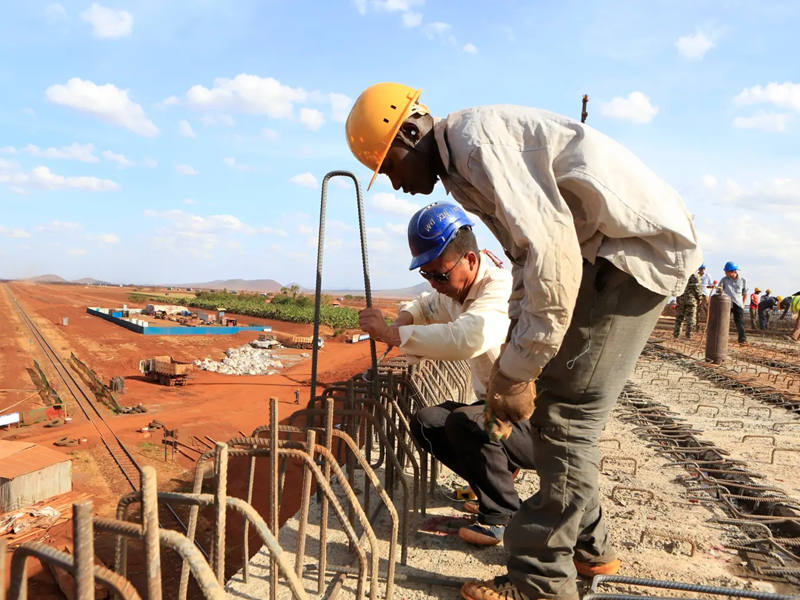

African Countries with Underdeveloped Infrastructure (Nigeria, Kenya, Ethiopia, etc.)
The overall power grid coverage rate in Africa is less than 40%, and even in peripheral areas of major cities, frequent power outages are common. Large-scale projects such as urban expansion, rural water supply systems, and mining supporting facilities in these countries have strict requirements for continuous concrete pouring. Once the grid power is interrupted, the entire project will be suspended. Diesel concrete pumps solve this pain point perfectly—they can operate continuously as long as there is diesel fuel, ensuring the progress of key projects. Taking Nigeria as an example, its rural areas have almost no formal grid coverage, and the construction of rural schools, hospitals, and roads all rely on off-grid construction equipment, making diesel concrete pumps a rigid demand product.
Central and South American Countries (Brazil, Peru, Colombia, etc.)
These countries have vast territories, and many key infrastructure projects (Amazon regional transportation construction, Andean mountain road renovation, remote mining area development) are located in areas far from urban power grids. Laying temporary power lines for these projects requires huge investment and long construction cycles, which is not economical. Diesel concrete pumps, with their “plug-and-play” off-grid operation capability, greatly reduce the project’s early investment in power infrastructure. In addition, Central and South America are prone to natural disasters such as floods and earthquakes, which often cause temporary power grid failures in disaster-stricken areas. Diesel concrete pumps also play an irreplaceable role in post-disaster reconstruction projects that require urgent construction (such as temporary housing and road repair).

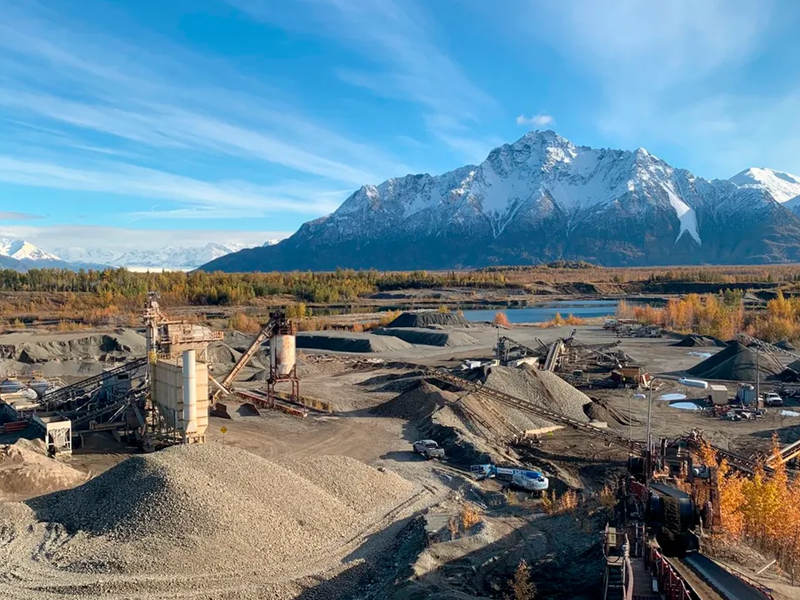

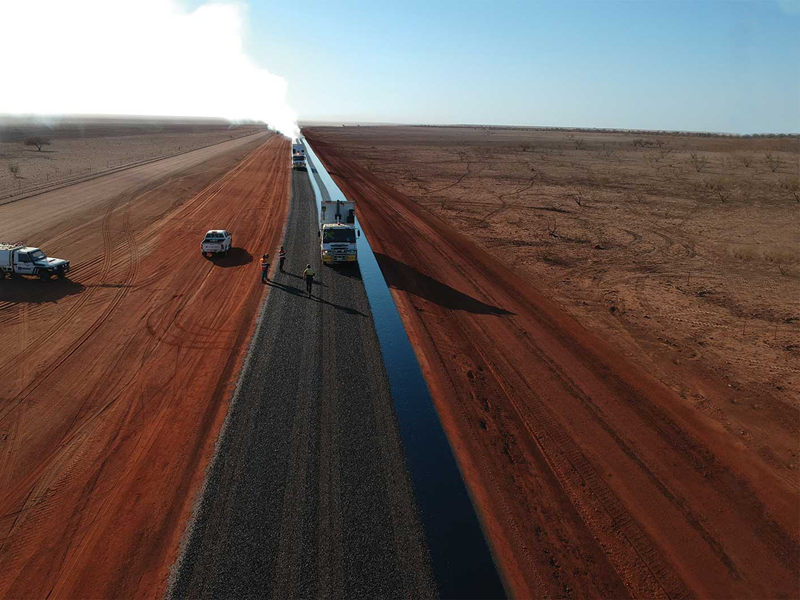

Remote Areas of Developed Countries (Australian Outback, Alaska in the US, etc.)
It should be emphasized that diesel concrete pumps are not only suitable for developing countries. In some developed countries, they are also widely used in remote areas where grid power is inconvenient to access. For example, the Australian outback has a sparse population and extremely long distances between cities; the construction of pastoral roads and water conservancy facilities in these areas cannot rely on the grid at all. Similarly, road maintenance and small-scale infrastructure projects in Alaska, USA, often face harsh weather and limited power supply, and diesel concrete pumps have become the preferred equipment due to their all-weather adaptability and off-grid operation capability.
In essence, the key to judging whether a country is suitable for diesel concrete pumps is not the level of economic development, but the matching degree between the “power supply status of project locations” and the “off-grid, stable, efficient” core advantages of diesel concrete pumps. The above regions all have a large number of projects that meet this matching condition, making them the core application markets for diesel concrete pumps.
As mentioned earlier, regions suitable for diesel concrete pumps often have unstable power supply or remote construction sites. In such conditions, besides reliability, diesel concrete pump energy consumption and cost control directly affect project profitability. Understanding concrete pump diesel consumption and formulating scientific cost-control plans are key for project managers. Below is a concise overview of energy consumption references and practical cost-saving methods.
Energy Consumption Reference & Cost Control
Diesel Consumption Reference of Diesel Concrete Pumps
Concrete pump diesel consumption is influenced by pump type, working pressure, conveying distance, and operation intensity. Based on practical project data, here are the core concrete pump diesel consumption per hour references for different models:
- Diesel trailer concrete pump: Stable energy consumption; concrete pump diesel consumption per hour is 6-10L under standard conditions (conveying height ≤50m, distance ≤200m), reaching 10-13L for high-pressure scenarios (e.g., high-rise construction).
- Diesel boom concrete pump: Energy consumption relates to boom length; for 30-45m boom models, concrete pump diesel consumption per hour is 10-14L normally, rising to 14-18L when the boom is fully extended or working at large angles.
- Diesel mixing concrete pump: Integrates mixing and conveying; concrete pump diesel consumption per hour is 8-12L under normal conditions (conveying height ≤30m, distance ≤100m), increasing to 12-15L for long-distance or high-slump concrete.
The above are reference values. Actual concrete pump diesel consumption varies by working conditions, equipment maintenance, and operation level. On-site test runs are recommended for accurate data.
Practical Cost Control Strategies
Controlling diesel concrete pump energy consumption and operating costs requires integrated management of equipment selection, maintenance, and operation.
Key strategies are as follows:
- Rational Selection of Equipment Models: Select models matching project needs (conveying height, distance, output) to avoid idle energy consumption or overloaded operation, which increases fuel use.
- Strengthen Daily Maintenance of Equipment: Regularly maintain engines, hydraulic systems, and pipelines (e.g., replace filters, check for oil leaks). Well-maintained pumps reduce concrete pump diesel consumption by 5-10%.
- Стандартизируйте операционные процедуры: Standardize operations: avoid long-term idling (2-3L/h consumption), control conveying speed stably, and arrange construction sequences to reduce equipment starts/stops.
- Optimize Fuel Management: Use qualified diesel, purchase in bulk to cut costs, and install fuel meters to monitor concrete pump diesel consumption per hour in real time and detect abnormalities.
- Reasonable Arrangement of Construction Schedules: Adjust construction time for extreme temperatures: avoid midday high temperatures in summer and preheat engines in winter to keep them operating at optimal temperature and reduce energy consumption.
In addition to controlling daily energy consumption and operating costs, the resale value of diesel concrete pumps is also a key factor affecting the overall investment return. For most purchasers, the diesel цена бетононасоса at the time of purchase is an important investment cost, and a higher resale value can effectively reduce the actual depreciation loss. Next, we will focus on the resale value of diesel concrete pumps, helping you understand how to maximize the residual value while clarifying the relationship between resale value and concrete diesel pump price.
Maximize Your Investment Return: Diesel Concrete Pump Resale Value Insights
Resale Value & Diesel Concrete Pump Price: Key Connection
Diesel concrete pump resale value is closely tied to the initial diesel concrete pump price. Reasonable pricing plus reliable quality ensures stable residual value. When evaluating concrete diesel pump price, factoring in resale value optimizes total cost of ownership for better long-term returns.
Core Factors Impacting Resale Value
- Бренд и качество: Reputable brands with reliable quality have 10-20% higher resale value, a key point when comparing concrete diesel pump price.
- Использование и обслуживание: Complete maintenance records and intact core components boost buyer trust and offset depreciation.
- Рыночный спрос: Popular models have stronger liquidity and more stable resale value.
- Accessories & Documents: Complete original documents and accessories increase resale trust and price.
Quick Tips to Boost Resale Value
Maximize residual value with long-term management from purchase:
- Choose reputable brands with transparent diesel concrete pump price.
- Keep detailed maintenance records and related certificates.
- Standardize operation and regular professional maintenance.
- Timely replace worn parts and upgrade available systems.
Second-Hand Resale Price Reference
Resale price (relative to initial diesel concrete pump price) based on market data:
- 1-2 years old (≤2000h, no major faults): ~70-80%
- 3-5 years old (2000-5000h, complete records): ~40-60%
- Over 5 years old (>5000h, usable): ~20-30%
Примечание: Actual resale price varies by market supply-demand and equipment condition. Consult professional dealers for accurate pricing.
When investing in concrete pumps, choosing between diesel and electric models is a core decision. Below is a concise comparative table highlighting their key differences, along with scenario-based selection guidelines to help you decide quickly.
Diesel vs Electric Concrete Pumps: Core Comparative Table
| Сравнение размеров | Дизельный бетононасос | Электрический бетононасос |
|---|---|---|
| Источник питания | Diesel engine (self-generating) | External power grid (requires stable power supply) |
| Применение | Areas with no/weak power supply, remote construction sites, disaster relief sites | Urban areas with complete power grid coverage, factories |
| Мобильность | Freely transferable (no cable restrictions) | Dependent on fixed power supply; re-wiring required for movement |
| Start-up Efficiency | Ready to use upon arrival (starts within 5 minutes) | Requires advance power connection (may take several hours) |
| Структура затрат | Diesel consumption cost (controllable) + low maintenance fee | Electricity fee (depends on local electricity price) + cable rental fee |
| Адаптация к экстремальным условиям окружающей среды | High temperature/low temperature/dust resistant (stable at -20℃~50℃) | Battery attenuation in low temperature; circuit overload risk in high temperature |
| Типичные пользователи | Contractors/developers (complex working conditions) | Municipal engineering/fixed construction sites (stable power supply) |
Наконечник: For mixed-scenario projects, match diesel and электрические бетононасосы by section to balance environmental requirements and efficiency.
Choosing a reliable diesel concrete pump is only the first step; professional one-stop service guarantee is crucial to ensure smooth project operation. As a professional construction equipment manufacturer, AIMIX provides comprehensive and customized services tailored to diesel concrete pump users, covering the entire process from pre-sales consultation to after-sales support.
One-Stop Service Guarantee for Diesel Concrete Pumps
Pre-Sales Service: Professional Demand Customization
One-on-one consultation by senior project consultants, who will contact you within 2 hours to understand your diesel concrete pump project requirements (e.g., working conditions, conveying needs).
Индивидуальные решения: Professional technical managers provide 2-3 sets of diesel concrete pump solutions, including parameters, configurations, 3D drawings, and related materials, with flexible configuration adjustments based on your needs.
In-Sales Service: Transparent Production Supervision
Связь в реальном времени: Continuously optimize the diesel concrete pump solution according to your dynamic needs during the process.
Full-process production supervision to ensure all parts of the diesel concrete pump comply with standards and guarantee product quality.
After-Sales Service: Comprehensive Worry-Free Support
Global service network: Dedicated service personnel in Indonesia, Malaysia, Pakistan, Saudi Arabia, etc., providing convenient local support for diesel concrete pump users.
- Full-process supporting services: Covering transportation (economical solutions, safe reinforcement), customs clearance (cooperative local companies), installation (professional Chinese and local certified engineers), and operator training.
- Local warehouses: Stock of diesel concrete pumps and related parts in key markets (e.g., Surabaya) for easy viewing and quick delivery.
- Услуга «под ключ»: One-stop full-process service, allowing you to wait for the diesel concrete pump to arrive and start using it directly without additional operations.
AIMIX has exported diesel concrete pumps and other equipment to over 100 countries. Contact us now for sincere and professional service tailored to your needs!
You can not only purchase products from Aimix, but also be our dealers in all over the world. Here shows you the steps.
How to Be Our Diesel Concrete Pump Distributor
We warmly invite you to join our distributor network and explore the diesel concrete pump market together. Here are the simple steps to become our distributor:
Свяжитесь с нами
Вы можете подать заявку через наш официальный сайт или связаться с нашим отделом маркетинга напрямую по телефону.
Обзор квалификации
Мы оценим квалификацию заявителя, чтобы обеспечить прочную основу для взаимного сотрудничества.
Подписать контракт
Как только мы достигнем соглашения о сотрудничестве, мы подпишем официальный дистрибьюторский договор.
Обучение и запуск
После завершения обучения продажам и работе с продуктом вы сможете официально начать свой путь в качестве нашего дистрибьютора.
Оценка и поддержка
AIMIX будет оказывать постоянную поддержку в управлении операциями, обновлении продуктов и маркетинговых мероприятиях.
Join us and grow together! We look forward to partnering with you!
